| Business Type | Manufacturer, Exporter |
| Model Name/Number | 4432 HI PRO |
| Weight | 34,000 Kg |
| Motor Power | 110 KW (150 HP) |
| Click to view more | |
Product Details

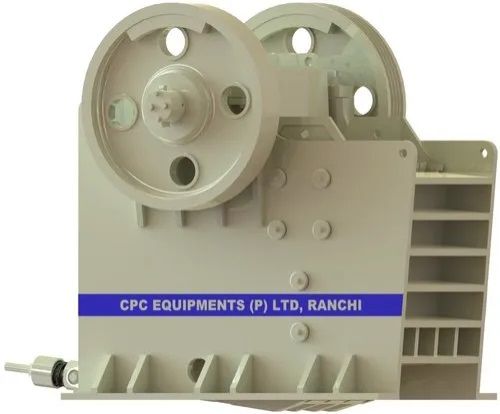

4432 Hi-Pro Series Primary Jaw Crusher are among the most advanced Crushers in the world. We have turned the conventional Single Toggle crushing technology upon its head with the unique Inverted Toggle Plate technology. Our crushers are Stronger, Require Less Maintenance and Last Much Longer.
Our Primary Jaw Crushers effectively incorporate the Strength and Economy of Double Toggle Jaw Crusher in a Single Toggle Machine.
Only the highest quality components go inside our Primary Jaw Crushers. Intelligent design and precision manufacturing ensure avery high uptime in our machinery.
Highlights:
Shaft: Massive AISI 4340 Forged Shaft, Hardened and Precision Ground to give a Long Life under extreme conditions
Flywheels: Cast Carbon Steel with Heavy Outer Rim ensure a smooth crushing action.
Bearings: Large Oversized Cylindrical Bore Spherical Roller Bearings manufactured by FAG, Germany
Main Frame and Pitman: Fabricated using Heavy Section Mild Steel Plates manufactured by SAIL, India.
Crushing Chamber: Completely lined with Easily Replaceable Wear Plates:
Jaw Plates: High Manganese Steel Castings with Machined Faces to ensure High Productivity, held in place by Easily Replaceable Clamping Bars and Wedges.
Cheek Plates: Two Piece Geometry for Easy Handling
Deflector Plate: Hardened Alloy Steel Casting for Additional Protection against Wear .
Hydraulic CSS Adjustment: Supplied as Standard in all Hi-Pro Series Primary Jaw Crushers.
Toggle Plate and Toggle Bearings: Machined and Hardened Castings. Lubrication Free Design.
