Stone Crushing Equipment
Leading Manufacturers, Exporters and Wholesaler of Double Toggle Jaw Crusher, Single Toggle Jaw Crusher, Stone Crusher 21610 Ah Series Ah Jaw Crusher, Surge Hopper, Vibrator Screening Machine and Vs 1254 Wire Mesh Design Vibrating Screen from Ranchi.
| Business Type | Manufacturer, Exporter, Supplier |
| Type | Jaw Crusher |
| Material | Cast Iron |
| Usage | Stone |
| Capacity | Upto 150 TPH |
| Brand Name | CPC |
| Model Name/Number | DT Series |
| Motor Power | 40 To 75 HP |
| Material Handled | Stone, Ores |
| Feeding Size | Upto 500mm |
| Dimensions | 24 |
Welcome to CPC Equipments Pvt. Ltd., the largest manufacturer of Jaw Crushers in Eastern India.
We manufacture the entire range of Jaw Crushers right from 8 TPH capacity to 200 TPH Capacity.
We have more than 2000 installations all over the country. Our Jaw Crushers are being used from both Primary and Secondary crushing of stones as well as ores.
We manufacture both Double Toggle as well as Single Toggle Jaw Crushers under various series as under:
Features
- DT Series Double Toggle Jaw Crusher
- Hi-Pro Series Primary Jaw Crusher
- Rhino Series Primary Jaw Crusher
- Rhino Series Secondary Jaw Crusher
- MTH Series Secondary Jaw Crusher
- MH Series Single Toggle Jaw Crusher
- AH Series Primary Jaw Crusher
- AH Series Secondary Jaw Crusher
Depending upon your requirement and application we will help you decide which Jaw Crusher may be most suitable for your application
| Business Type | Manufacturer, Exporter |
| Type | Jaw Crusher |
| Material | Cast Iron |
| Usage | Stone |
| Capacity | Upto 200 TPH |
| Brand Name | CPC |
| Model Name/Number | Hi-Pro Series / Rhino Series / MTH Series / MH Series |
| Feeding Size | Upto 700mm |
| Dimensions | 16 |
Welcome to CPC Equipments Pvt. Ltd., the largest manufacturer of Jaw Crushers in Eastern India.
We manufacture the entire range of Jaw Crushers right from 8 TPH capacity to 200 TPH Capacity.
We have more than 5000 installations all over the country. Our Jaw Crushers are being used from both Primary and Secondary crushing of stones as well as ores.
We manufacture both Single Toggle as well as Double Toggle Jaw Crushers under various series as under:
Hi-Pro Series Primary Jaw Crusher
Rhino Series Primary Jaw Crusher
Rhino Series Secondary Jaw Crusher
MTH Series Secondary Jaw Crusher
MH Series Single Toggle Jaw Crusher
AH Series Primary Jaw Crusher
AH Series Secondary Jaw Crusher
DT Series Double Toggle Jaw Crusher
Depending upon your requirement and application we will help you decide which Jaw Crusher may be most suitable for your application.
| Business Type | Manufacturer, Exporter |
| Material | Cast Iron And MS |
| Usage | Stone |
| Capacity | 15 TPH - 20 TPH |
| Brand | CPC |
| Model Name/Number | 21610 AH Series Jaw Crusher |
| Power | 35 HP |
| Warranty | 1 Year |
Product Description
CPC 21610AH Single Toggle Jaw Crusher are High Performance Machines built for Heavy and Continuous Duty.
Product Specification:
Crushing Capacity - 15 to 20 TPH
Engine Power - 35 HP
Speed - 300 RPM Hard Stone,325 RPM Soft Stone.
Brand - CPC
Motor Power - 30 HP
Engine - 35 HP
Output Size - 75 mm
Machine Size - 16" x 10"
Model Number - 21610 AH
Max Feed Size - 8"Min Jaw Setting.
- Features:
- Heavy Machine
- High Production
- Minimum Breakdown
- High Quality Bearings
- Hardened Alloy Steel Shaft
- Heat Treated Body & Pitman
Additional Information:
- Production Capacity: 15TPH - 20 TPH
| Business Type | Manufacturer, Exporter |
| Finishing | Polished |
| Type | Vibrating Hopper |
| Country of Origin | India |
| Application | Industrial Use |
| Brand | CPC |
| Capacity | 200 TPH |

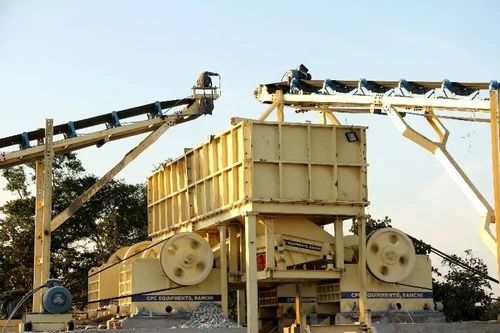

CPC SURGE HOPPER For Stone Crusher Plant.
- Surge Hopper Is Used to ensure Continous and even flow of material to the Secondary Crusher.
- Our Surge Hopper Stone Box Design that Gives Very Long Life.
- Our Surge Hopper Size Available Up-to 1000 CFT.
- Configration Available .
* Surge Hopper With Single Vibro Fedder.
* Surge Hopper With Double Vibro Fedder.
* Surge Hopper With Three Vibro Fedder.
* Surge Hopper With Four Vibro Fedder.
Additional Information:
- Production Capacity: Up to 200 TPH
- Delivery Time: 1 Month
| Business Type | Manufacturer, Exporter |
| Capacity | 60 Ton/Hr |
| Motor Power | 20 HP |
| Brand Name | CPC |
| Model Name/Number | VC 1244 |
| Screening Capacity | 60 To 90 TPH |
| Screening Media | Wire Mesh Screen |
| No. Of Decks | 4 |
Product Description

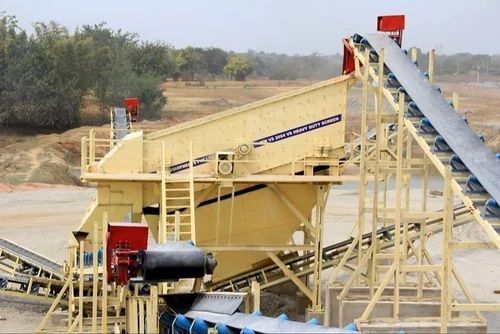

- CPC VS 1244 Wire Mesh Design Vibrating Screen have specially been designed for continous duty operation in tough & dusty conditions:
- Option of plate deck & wire mesh deck
- Fully welded design for extra strength
- Precision machined shaft assembly for perfect bearing alignment
- Simple grease lubrication with large grease bank
- Quality bearings
- Bearing fitting after lapping
- High tensile precision machined housing bolts
Product SpecificationMotor Power20 HPBrandCPCModel Name/NumberVS 1244Screening Capacity60 to 90 TPH (Mesh Deck)Screening MediaWire Mesh ScreenScreening Capacity Plate Deck30 - 40 TPHWidth4 FtLength12 FtNo. of Decks4
| Business Type | Manufacturer, Supplier |
| Brand | CPC |
| Country of Origin | India |
| Application | Cages, Construction, Construction Wire Mesh, Filter |
| Number Of Flower | Vibrating Wire Mesh Screen |
| Model No. | VS 12' X 5' X 4' Deck |
| Screening Area | 12' x 5' |
| No. of Decks | 4 |
| Motor Power | 25 HP |
| Screening Capacity (Plate Deck) | 40-60 TPH |
| Screening Capacity (Wire Mesh Deck) | 75-100 TPH |
| Delivery Time | 1-2 months |
- product description
cpc vibrating screens have specially been designed for continous duty operation in tough and dusty condition .
- option of plate deck and wire mesh deck.
- fully welded design for extra strength.
- precision mavhined shaft assembly.
- simple grease lubrication with large grease bank.
- high quality bearings.
- high tensile precision machined housing bolts.
product specification
| motor power | 25 hp |
| brand | cpc |
| model name/number | vs 1254 |
| screening capacity | 75 to 100 tph (mesh deck) |
| screening media | wire mesh screen |
| screening capacity plate deck | 40 - 60 tph |
| width | 5 ft |
| length | 12 ft |
| no. of decks | 4 |
