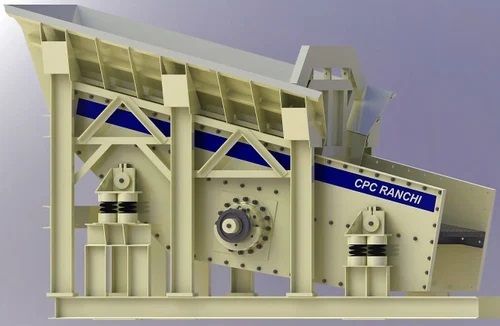

VGF Series Vibrating Grizzly Feeder
Leading Manufacturers, Exporters and Wholesaler of Vgf 1232 Vibrating Grizzly Feeder and Vibrating Grizzly Feeder from Ranchi.
| Business Type | Manufacturer, Exporter |
| Brand Name | CPC |
| Machine Model | VGF 1232 |
| Length | 12 Ft |
| Width | 3 Ft |
| No. Of Decks | 2 |
| Max Feed Size | 24 Inch |
| Capacity | 50 To 100 TPH |
| Motor HP | 30 HP |
| Speed | 750 - 900 RPM |
CPC VGF 1232 Vibrating Grizzly Feeder is the toughest grizzly feeder available in the market designed for heavy and continous duty:
- Heavy fabricated feed hopper with door for feed control
- Extra strong feed plate for receiving the material from hopper
- Non-choking stepped deck design for primary screening
- Heavy alloy steel grizzly bars for long life
- Heavy vibration for effective screening
- Adjustable slope of grizzly between 5-15 deg
- Simple grease lubrication with large grease bank
- Easily replaceable socket type bearing housing
- Precision machined shaft assdembly for perfect
- Bearing alignment
- Quality bearings
| Business Type | Manufacturer, Exporter |
| Brand Name | CPC |
| Model | VGF 1552 |
| Motor | 40 HP |
| Max Feed Size | 48 Inches |
| No. Of Decks | 2 |
| Length | 15 Feet |
| Width | 5 Feet |
CPC Vibrating Grizzly Feeder is the toughest grizzly feeder available in the market designed for heavy and continous duty .
- Heavy Fabricated Feed Hopper with Door For Feed Control
- Extra Strong Feed Plate For Receiving the Material From Hopper
- Heavy Alloy Steel Grizzly Bars For Long Life
- Heavy Vibration For Effective Screening
- High Quality Bearings
- 1 Year Warranty
M/C Model - VGF 1552
length - 15'
Width - 5'
No. of Decks - 2
Max Feed Size - 48'
Capacity - 110 to 225
RPM - 750 to 900
Motor - 40 HP
Additional Information:
- Production Capacity: 110 to 225 TPH
