MTH Series Secondary Jaw Crusher
Leading Manufacturers, Exporters and Wholesaler of Crusher Machine, Mini Stone Crusher, Stone Crusher 2006 Mth Series Secondary Jaw Crusher, Stone Crusher 2166 Ah Series Jaw Crusher and Stone Crusher 3006 Mth Series Jaw Crusher from Ranchi.
| Business Type | Manufacturer, Exporter |
| Model Number | 2165 MTH |
| Motor Power | 25 HP |
| Crushing Capacity | 8 To 10 TPH |
| Min Jaw Setting | 1/2 |
| Machine Size | 16 |
| Max Feed Size | 5 |
| Output Size | 20 Mm |
| Engine Power | 30 HP |
| Speed | 325 RPM Hard Stone, 340 RPM Soft Stone |
CPC 2165 MTH Single Toggle Jaw Crusher are High Performance Machines built for Heavy and Continuous Duty
Features
- High production
- Minimum breakdown
- Quality bearings
- Light Weight Jaw Plates
- Heavily Ribbed Body & pitman
- High Quality Bearings
- Heat Treated Body & pitman
- Hardened Alloy Steel Shaft
| Business Type | Manufacturer, Exporter |
| Production Capacity | 18 TPH |
| Brand Name | CPC |
| Model Name/Number | 2406 MTH |
| Motor Power | 35 HP |
| Min Jaw Setting | 1/2 |
| Machine Size | 24 |
| Max Feed Size | 5 |
| Output Size | 20 Mm |
| Crushing Capacity | 15 To 18 TPH |
| Engine Power | 40 HP |
| Speed | 325 RPM Hard Stone, 340 RPM Soft Stone |
CPC 2406 MTH Single Toggle Stone Crusher are High Performance Machines built for Heavy and Continuous Duty
Features
- High production
- Minimum breakdown
- Quality bearings
- Light Weight Jaw Plates
- Heavily Ribbed Body & pitman
- High Quality Bearings
- Heat Treated Body & pitman
- Hardened Alloy Steel Shaft
| Business Type | Manufacturer, Exporter |
| Material | Cast Iron |
| Crushing Capacity | 12 To 15 TPH |
| Min Jaw Setting | 1/2 |
| Brand | CPC |
| Machine Size | 20 |

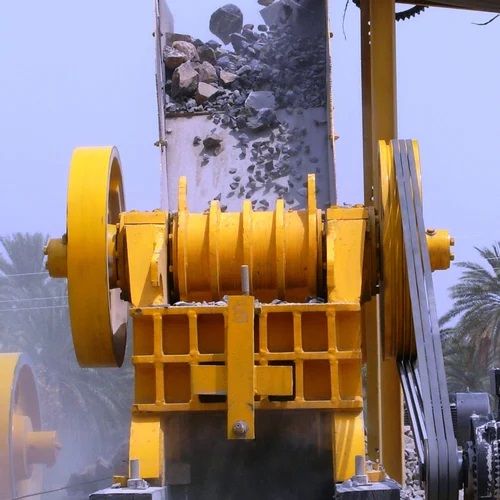

| Model Number | 2006 MTH |
| Max Feed Size | 5 |
| Output Size | 20 Mm |
| Motor Power | 30 HP |
| Engine Power | 35 HP |
| Speed | 325 RPM Hard Stone, 340 RPM Soft Stone |
CPC 2006 MTH Single Toggle Jaw Crusher are High Performance Machines built for Heavy and Continuous Duty
Features
- High production
- Minimum breakdown
- Quality bearings
- Light Weight Jaw Plates
- Heavily Ribbed Body & pitman
- High Quality Bearings
- Heat Treated Body & pitman
- Hardened Alloy Steel Shaft
Additional Information:
- Production Capacity: 15 TPH
- Delivery Time: 1 Month
| Business Type | Manufacturer, Supplier |
| Type | Jaw Crusher |
| Material | Hardened Alloy Steel, Heat Treated Body & Pitman |
| Features | Heavy Machine,High Production,Minimum Breakdown,High Quality Bearings |
| Size | 16 * 06 |
| Max Feed Size | 5' |
| Output Size | 20mm |
| Min Jaw Setting | 1/2' |
| Min Crushing Capacity | 12 TPH |
| Max Crushing Capacity | 15 TPH |
| Motor Hp | 30 HP |
| Engine Hp | 35 HP |
Product Description

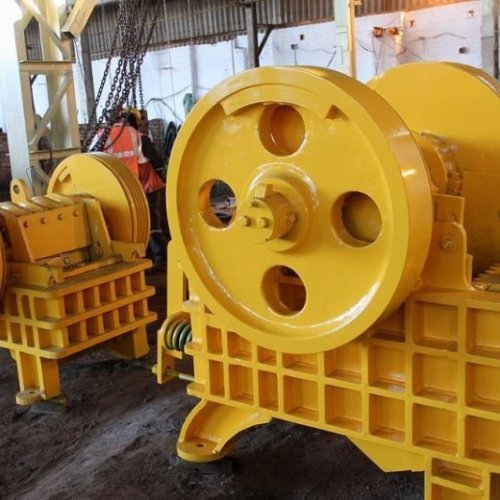

CPC 2166 AH Single Toggle Jaw Crusher are High Performance Machines built for Heavy and Continuous Duty.
Features:
- Heavy Machine
- High Production
- Minimum Breakdown
- High Quality Bearings
- Hardened Alloy Steel Shaft
- Heat Treated Body & Pitman
Specification:
- Size - 16 * 06
- Max Feed Size - 5'
- Output Size - 20mm
- Min Jaw Setting - 1/2'
- Min Crushing Capacity - 12 TPH
- Max Crushing Capacity - 15 TPH
- Motor HP - 30 HP
- Engine HP - 35 HP
- Hard Stone RPM - 325
- Soft Stone RPM - 350
| Business Type | Manufacturer, Supplier |
| Material | Metal |
| Brand | CPC |
| Certification | ISO 9001:2008 |
| Condition | New |
| Finishing | Polished |
| Country of Origin | India |
| Total Carbohydrate | 1 year |
| Crushing Capacity | 18 - 22 TPH |
| Number Of Flower | Stone Crusher Parts |
| Usage | Constructional, Industrial |
| Capacity(t/h) | 18 - 22 TPH |
| Motor Type | induction motor |

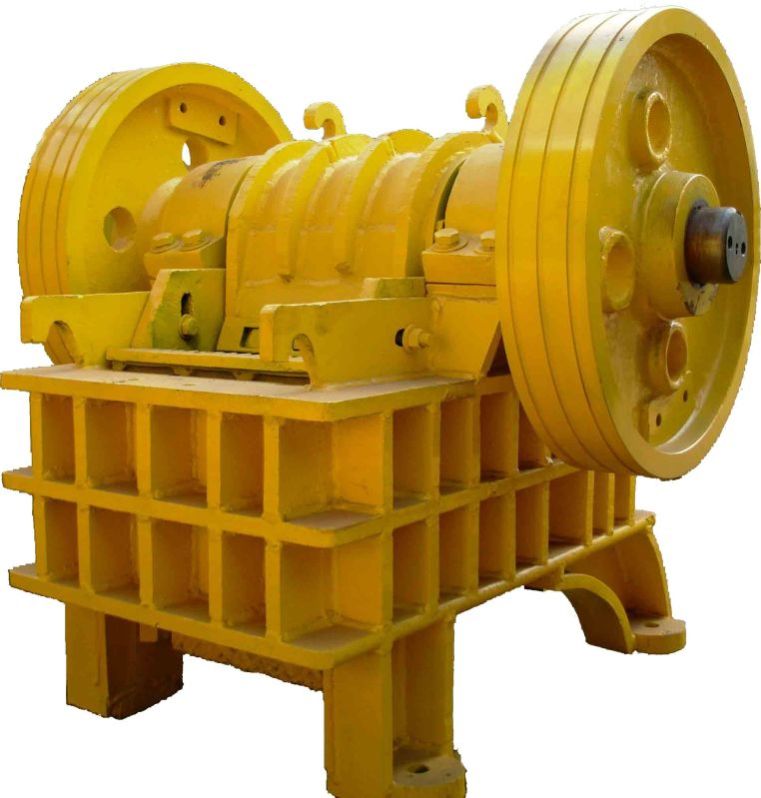

| Model No. | 3006 MTH |
| M/C Size | 30'' x 06'' |
| Max Feed Size | 5'' |
| Output Size | 20mm |
| Min Jaw Setting | 1/2'' |
| Motor | 45 HP |
| Engine | 50 HP |
| Delivery Time | 1-2 months |
| Packaging Details | The MTH Series Jaw Crusher is meticulously packaged to guarantee safe transportation and delivery. It is securely enclosed in robust wooden crates or boxes to prevent any damage during transit. Each unit is meticulously wrapped with protective materials to prevent scratches and other surface damages. The packaging is engineered to endure rough handling and diverse weather conditions during transportation. Special attention is given to ensuring that all components are correctly secured and shielded inside the packaging. |
CPC 3006 MTH Single Toggle Jaw Crusher are High Performance Machines built for Heavy and Continuous Duty
Features:
- High Production
- Light Weight Jaw Plates
- Heavily Ribbed Body & Pitman
- High Quality Bearings
- Heat Treated Body & Pitman
- Hardened Alloy Steel Shaft
Specification:
- Balanced fly wheels
- Size - 30 * 06
- Max Feed Size - 5'
- Otput Size - 20mm
- Min Jaw Setting - 1/2'
- Min Crushing Capacity - 18 TPH
- Max Crushing Capacity - 22 TPH
- Motor HP - 45 HP
- Engine HP - 50 HP
- Hard Stone RPM - 325
- Soft Stone RPM - 340
